Product Info:

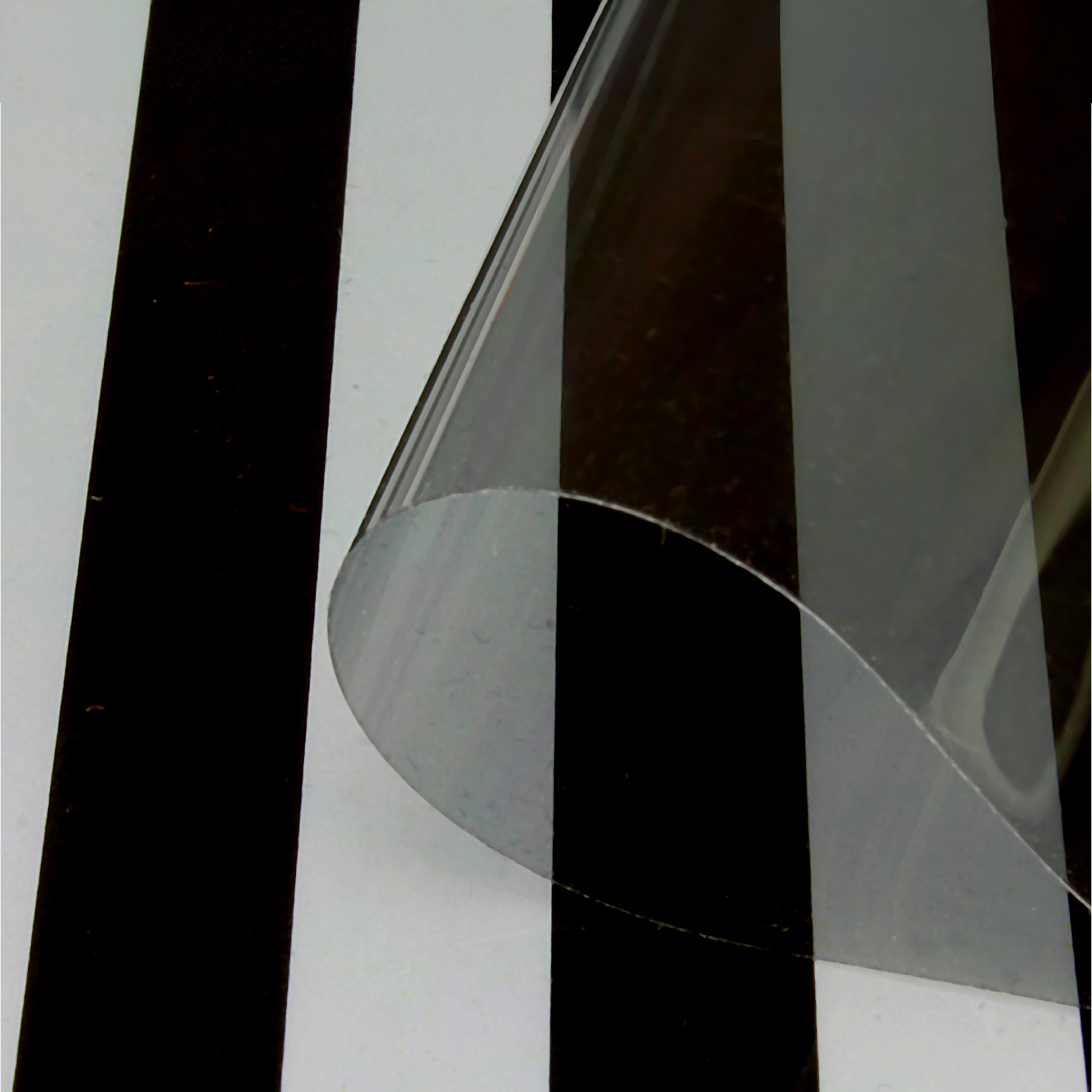

Precious metal coated and self-adhesive special window film for shielding of high-frequency radiation (HF). Window film with 62 % light transmission in bright gray. Attenuation 18 dB. Indoor application on non heat absorbing glass surfaces.

Heat absorbing glass is already metallized. When solar radiation permeates the metallization and subsequently hits the window foil, multi-reflections may occur. The windowpane will needlessly heat up and thus by expansion cause leaks or even cracks in the border-seals. Check the type of glass in advance.

• Attenuation 19 dB at 1 GHz
• Light transmission: 72 %
• Color of daylight: Bright gray
• Made by Physical level deposition of copper salts
• 62 % light transmission in bright gray. Reduces glare. 50% IR reduction – reduction of AC load.
• Certified by National physical laboratory – Govt of India’s Apex lab for scientific studies and measurements
• 7 years manufacturer’s warranty against loss of shielding performance

Usage:

For the application you mandatorily need our plastic scraper FVR10 and the mounting concentrate FMK30, see our accessories below. An assembly instruction is included in the delivery.

• Mounting: Water-activated, pressure-sensitive adhesive to the back
• Grounding: This product without an electrically conductive surface does not shield low-frequency alternating electric fields (LF)

Dimensions:

• Width: 76 cm
• Length: Linear meter / 30 m roll
• Material thickness: 37.5 µm
